What's the Different Between COB GOB and SMD on Small Fine Pixel LED Video Wall?
When comparing COB, GOB, and SMD in the context of smaller, fine-pixel LED video walls, the differences mainly lie in the construction, durability, and performance, especially when it comes to delivering better form factors (compactness, resilience, and visual quality). Let’s dive into these key differences:
Table of Contents
1. What is COB? COB (Chip on Board)
Form Factor: COB LEDs offer the most compact form. The LED chips are directly mounted on the board without the need for traditional packaging or lenses. This design reduces the overall size of each LED, making them ideal for fine-pixel video walls.
Advantages:
Ultra-Compact: The absence of traditional LED packages leads to more compact modules with finer pixel pitch.
Higher Brightness: COB technology allows for higher brightness, perfect for smaller, high-density displays.
Uniformity: COB produces a more uniform display since the LEDs are closely packed together.
Durability: Better heat dissipation and protection from physical damage because of the robust design.
Disadvantages:
Cost: COB modules are generally more expensive to produce, particularly at smaller pixel pitches.
Complex Manufacturing: The process is more sophisticated and requires precise technology.

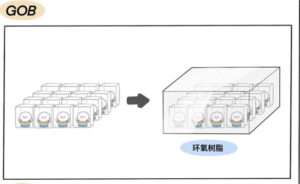

2. What is GOB? GOB (Glue on Board)
Form Factor: GOB is a newer approach where the LEDs are mounted on the PCB, and a protective layer of glue is applied over them. This glue layer helps enhance the LED’s protection, especially for fine-pitch displays.
Advantages:
Protection: The glue layer acts as a shield against moisture, dust, and physical damage, making it a good option for environments where durability is critical.
Reduced Maintenance: The protective layer helps reduce the frequency of maintenance due to environmental exposure.
High Visual Quality: Similar to COB, GOB also offers good brightness and color consistency for fine-pitch applications.
Disadvantages:
Heat Management: The glue layer can impact heat dissipation slightly, potentially reducing performance in extremely high-brightness scenarios.
Still Relatively New: GOB technology is not as widely available or as optimized in all production environments, which may make it more expensive or less available in some regions.

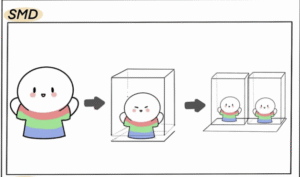

3. What is SMD? SMD (Surface-Mounted Diode)
Form Factor: SMD LEDs are the most common type of LED used for video walls. Each individual LED is mounted on a surface-mounted chip, which is then placed on a circuit board. It’s a more traditional design compared to COB or GOB.
Advantages:
Cost-Effective: SMD is cheaper and easier to manufacture, making it the go-to option for general fine-pitch displays, especially when cost is a key consideration.
Widely Available: This is the most established technology, and SMD modules are readily available in various pixel pitches.
Disadvantages:
Lower Brightness: Compared to COB and GOB, SMD typically delivers lower brightness and less uniformity in very fine-pitch applications.
Less Durability: SMD modules are more vulnerable to dust, moisture, and physical impacts compared to COB and GOB.
Which is Better for a Fine-Pitch Small Pixel LED Video Wall?
When it comes to fine-pixel LED video walls with a better form factor(compactness, durability, and visual quality), COB generally offers the best solution:
• COB is more compact and delivers higher brightness with better uniformity, making it ideal for smaller pixel pitches. It’s also more resilient and offers long-term durability, making it perfect for high-end applications.
• GOB offers enhanced protection and is ideal for outdoor or semi-outdoor settings where exposure to environmental factors is a concern. It still provides a good form factor for fine-pitch but may lag behind COB in performance and compactness.
• SMD is a more cost-effective option and works well for applications that do not require the highest level of performance. However, its form factor and durability are not as refined as COB or GOB, especially for ultra-fine-pixel displays.
Table Format on difference between COB,GOB and SMD on Small Pixel LED Wall
Here’s a concise summary of the differences between COB, GOB, and SMD for smaller fine-pixel LED video walls in a table format:
| Technology | Form Factor | Advantages | Disadvantages | Best For |
|---|---|---|---|---|
| COB | Ultra-Compact: Directly mounts LEDs on PCB without packaging. | – High brightness and uniformity- Better heat dissipation- Durable and robust design | – Higher cost- Complex manufacturing process | High-end fine-pitch video walls where performance, brightness, and durability are critical. |
| GOB | Protected: Glue layer over LEDs for extra protection. | – Protects against dust, moisture, and physical damage- Good brightness and color consistency | – Slightly less heat dissipation- Newer and more expensive | Outdoor or semi-outdoor fine-pitch video walls needing durability and environmental protection. |
| SMD | Traditional: Individual LEDs mounted on a surface-mounted chip. | – Cost-effective- Widely available- Flexible in pixel pitch | – Lower brightness and uniformity- Less durable in harsh conditions | General fine-pitch applications with budget constraints, but performance is secondary. |
Summary:
For better form (compact, high-performing, and durable): COB is the best choice for smaller fine-pixel LED video walls.
If you need additional protection and resilience, consider GOB.
If budget is a concern and performance can be sacrificed slightly, SMD is a viable option.
Recommendation:
• For best form (compactness, high performance, and durability), COB is the top choice.
• For environmental protection and cost-effectiveness, consider GOB.
• For a budget-friendly solution with decent performance, SMD works well.
